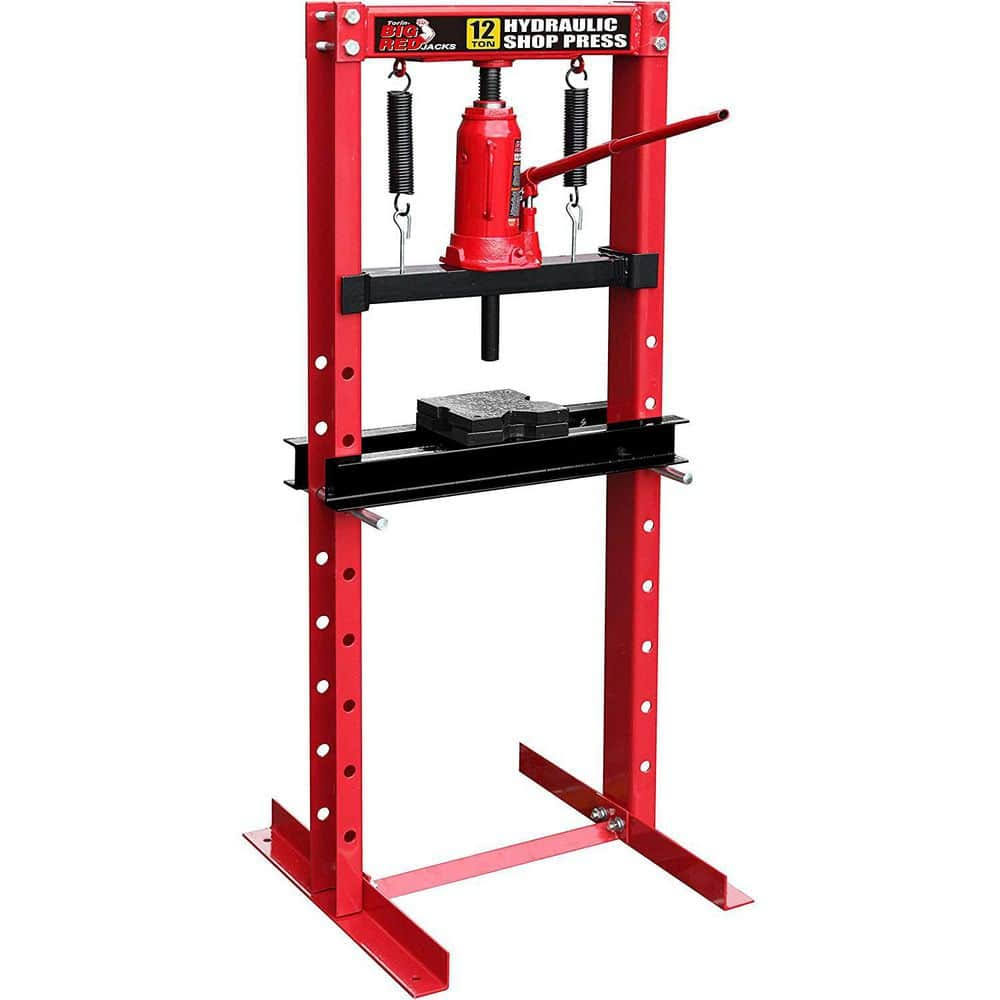

Big Red T51201 12-Ton Shop Press with Stamping Plates
The Torin Big Red T51201 heavy-duty steel H-frame hydraulic garage/shop floor press is designed for straightening, bending, pressing and stamping. Equipped with a 12 ton (24,000 lbs.) capacity bottle jack with a working range from 10-1/2 in. to 35 in. Manually raise and lower the table surface for the best working distance for the job. Includes arbor press stamping plates that feature V-blocks and a 180° guide design. Features high quality precision springs for slowly and safely bouncing back after pressing down operation. The piston-ram is treated and polished to resist skiving. After a thorough chemical wash to ensure a long-lasting finish and to help prevent rust, it’s treated with a powder-coated, lead-free paint, providing a durable coating which is oil, grease and dirt-resistant for easy cleanup.
- Heavy-duty steel H-frame hydraulic garage/shop floor press is designed for straightening, bending, pressing and stamping, Includes arbor press stamping plates that feature V-blocks and a 180° guide design
- Manually raise and lower the table surface for the best working distance for the job, Equipped with a 12 ton (24,000 lbs.) capacity bottle jack with a working range from 10-1/2″ to 35
- Features high quality precision springs for slowly and safely bouncing back after pressing down operation, Piston-ram is treated and polished to resist skiving
- Treated with a powder-coated, lead-free paint, providing a durable coating which is oil, grease and dirt-resistant for easy cleanup
- Includes a limited 1 year manufacturer warranty
- California residentssee Prop 65 WARNINGS
Dimensions
| Base Length (in.) | 20.87 | Base Width (in.) | 19.69 |
| Collapsed height (in.) | 48.43 | Handle Length (in.) | 16.73 in |
| Product Depth (in.) | 20.87 in | Product Height (in.) | 48.43 in |
| Product Width (in.) | 19.69 in | | |
Details
| Features | Rust Resistant | General Part Type | Bottle Jack |
| Included | Handle, Mounting Hardware | Material | Steel |
| Maximum Lift Height (in.) | 24 in | Mechanism type | Hydraulic |
| Minimum Lift Height (in.) | 0 | Product Weight (lb.) | 92.59 lb |
| Weight Capacity (lb.) | 24000 lb | Saddle Diameter (in.) | 1 |
Warranty / Certifications
| Manufacturer Warranty | Limited 1 Year Manufacturer Warranty | | |
